- With indicator light design, when your fuse is blown, the indicator light is on, which is convenient for you to check and
- . With 2 spare fuse slots to store 2 spare fuses.
- .Wide applicability: suitable for 12-32V cars, yachts, etc.

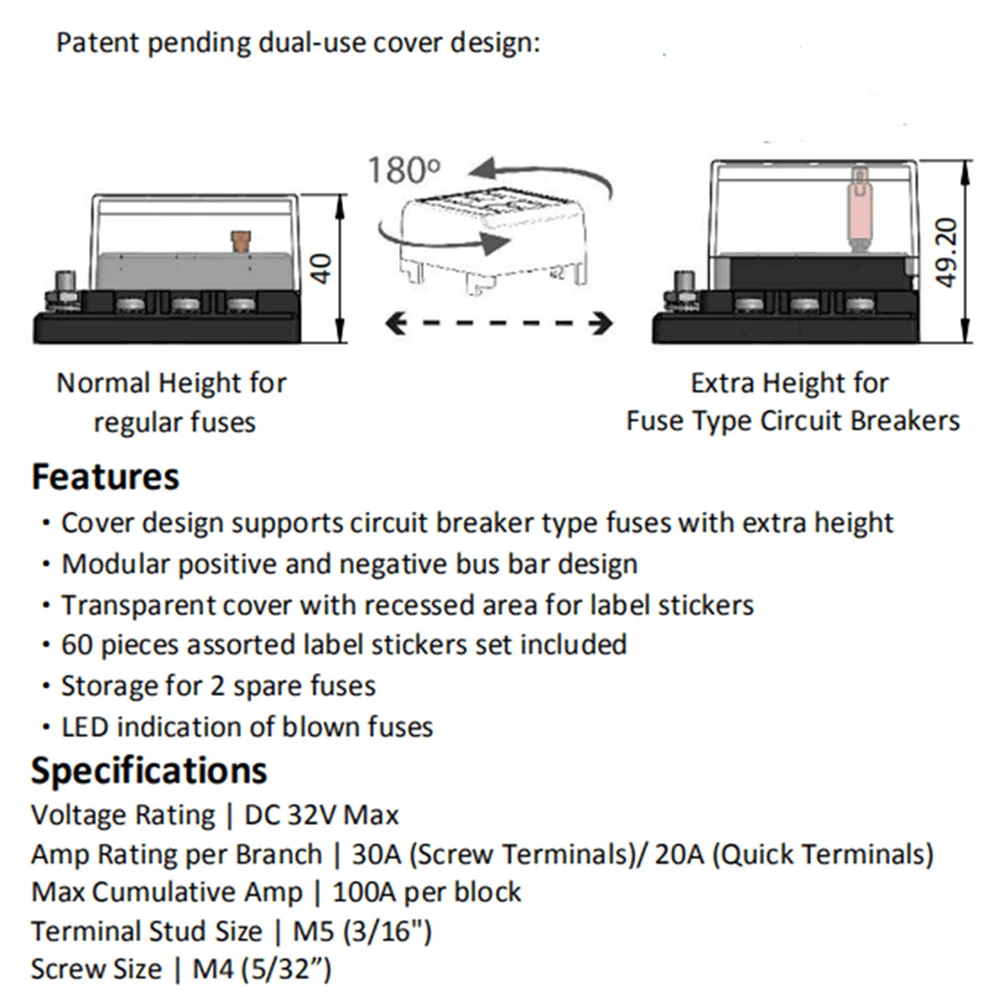

- . 180° rotatable transparent cover, adjust the height of the upper cover according to the size of the fuse you need.
- . With transparent dust cover for fuses of different height.
- . Support standard (ATP/ATC/ATO) blade fuses.
- Product model: F4170-12-Z
- Product material: PC+PBT
- Product voltage: DC 32V Max.
- Single circuit current: Max. 30A
- Total circuit load current: Max. 100A
- Terminal bolt: M5 (#10) (3/16″)
- Branch screw: M4 (#8) (5/32″)
- Applicable fuse type: for ATP/ATC/ATO manual reset fuses
- Gross weight: 200g
- Product size: 86*117*40mm/3.39*4.61*1.57″
- 1 X Fuse Box
- 4 X Labeling Stickers
- 4 X Installing Screws
- 4 X 5A Blade Fuses (Orange)
- 4 X 10A Blade Fuses (Red)
- 4 X 15A Blade Fuses (Blue)
- 4 X 20A Blade Fuses (Yellow)
- 2 X Wire Lugs with Yellow Heat Shrink Tubes
- 12 X Wire Lugs with Blue Heat Shrink Tubes
